EFD core
مرتضی کاظمی2018-08-27T14:38:33+04:30

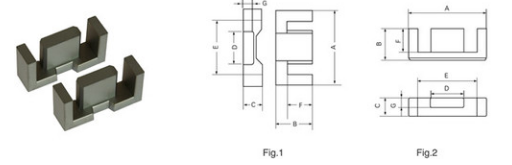

| Effective Length | Effective Area | G | F | E | D | C | B | A | Type | NO |
| 31.1mm | 10.25mm² | 2.5 | 4.9 | 8.1 | 4.1 | 4.0 | 6.7 | 11.1 | EFD11 | 1 |
| 36.45mm | 11.44mm² | 2.2 | 5.55 | 11 | 4.8 | 4.8 | 7.6 | 15.5 | EFD15 | 2 |
| 46.69mm | 28.5mm² | 3.6 | 7.7 | 15.4 | 6.8 | 6.8 | 10 | 20.5 | EFD20*20*6.8 | 3 |
| 48.68mm | 26.1mm² | 3.6 | 7.8 | 16 | 6.6 | 6.6 | 10.1 | 20.6 | EFD20D | 4 |
| 59.23mm | 34.74mm² | 3.7 | 10.5 | 15.9 | 7.8 | 7.8 | 13.8 | 20 | EFD20*27 | 5 |
| 57mm | 57.6mm² | 5.15 | 9.5 | 19.3 | 9.1 | 9.1 | 12.6 | 25.6 | EFD25*25*9 | 6 |
| 76mm | 57.6mm² | 5.15 | 12.8 | 19.3 | 11.3 | 9.1 | 16 | 25.6 | EFD25*32*9 | 7 |
| 74.36mm | 62.5mm² | 4.9 | 11.4 | 23 | 14.6 | 9.1 | 15.2 | 30.5 | EFD30 | 8 |
| 74.36mm | 62.5mm² | 4.7 | 11.5 | 23.5 | 14.6 | 9.2 | 15.3 | 31.4 | EFD31 | 9 |
| 83.4mm | 46.8mm² | 4 | 13.1 | 24.1 | 11.7 | 7.8 | 17.4 | 31.8 | EFD31*35 | 10 |
| 103.95mm | 59.5mm² | 3.5 | 16.8 | 23.5 | 17 | 5.4 | 22.3 | 33.7 | EFD34 | 11 |
| 76.09mm | 117.23mm² | 7.5 | 11.7 | 26.6 | 15.3 | 11.5 | 16.9 | 36.5 | EFD36*34 | 12 |
| 90.3mm | 62.5mm² | 3.35 | 13 | 29.7 | 18.7 | 7.6 | 17.7 | 37.8 | EFD38*35 | 13 |
| 68mm | 69mm² | 3 | 17.8 | 33 | 24 | 5.95 | 24.5 | 45.7 | EFD45*49 | 14 |
| 106mm | 78.5mm² | 3.3 | 17.7 | 33.4 | 22.75 | 6.5 | 24.3 | 45.5 | EFD46*49 | 15 |
| 113.7mm | 114.3mm² | 5 | 18.5 | 38 | 23.5 | 9 | 25.6 | 50.5 | EFD50 | 16 |
